RAY Egelhof - Industrial oil burners "NBO" - series

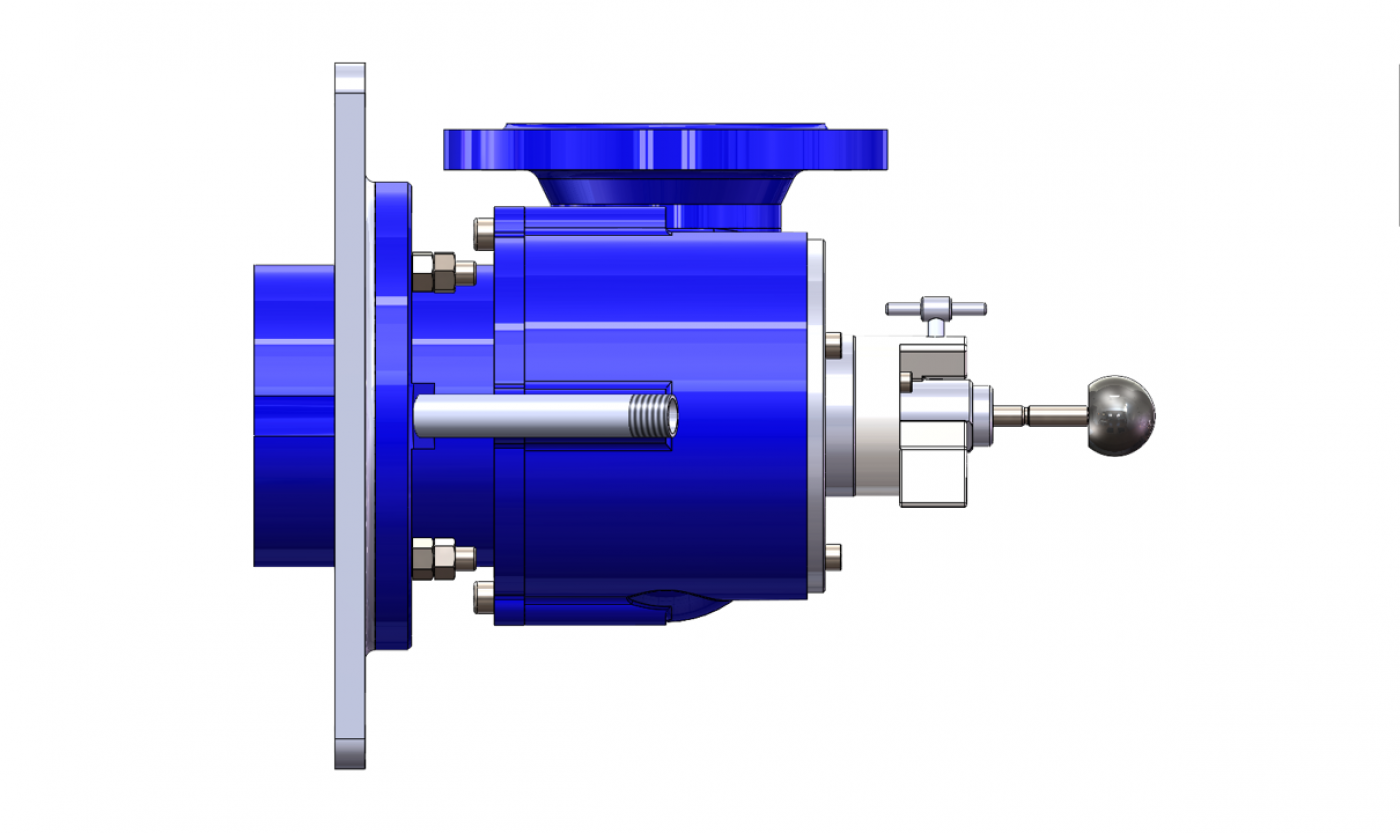

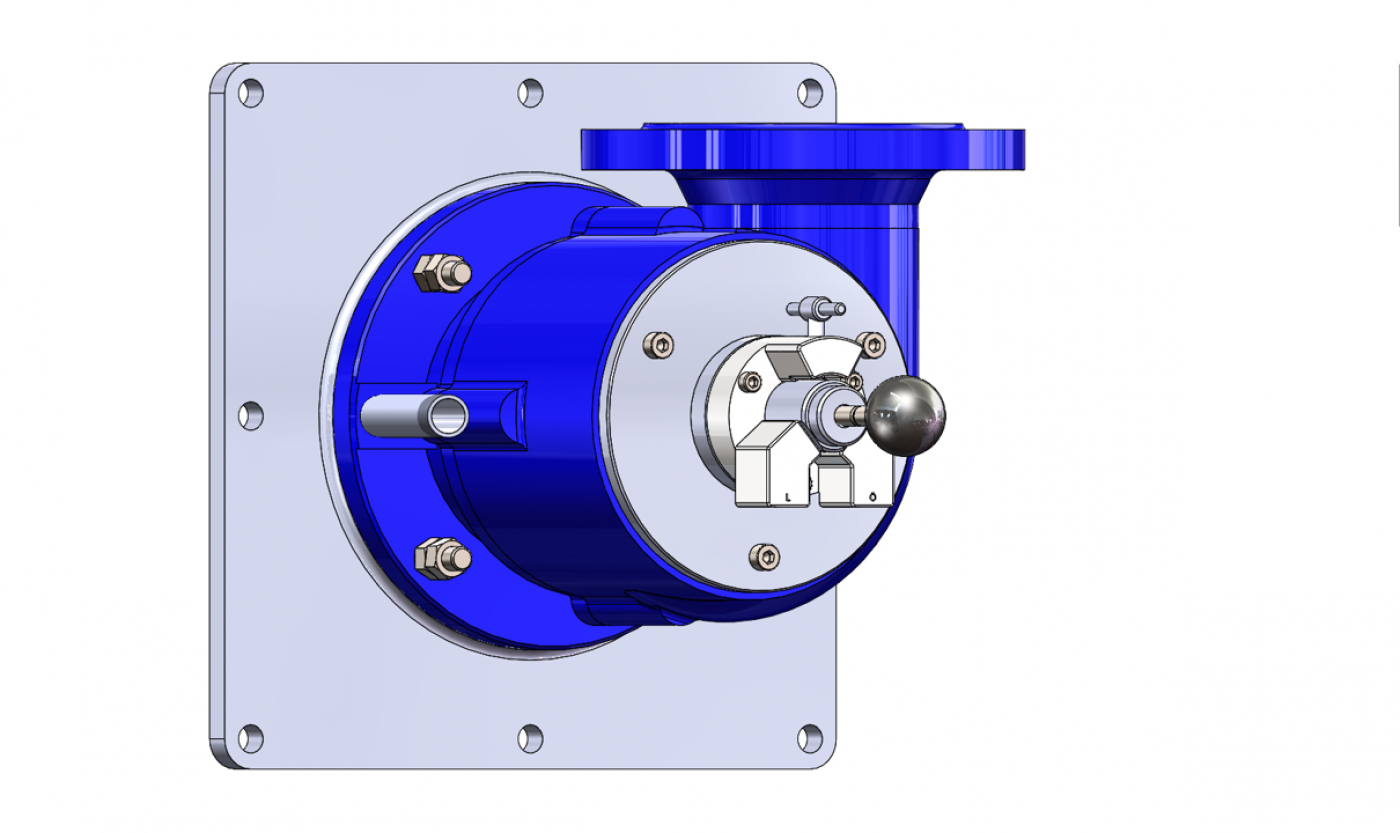

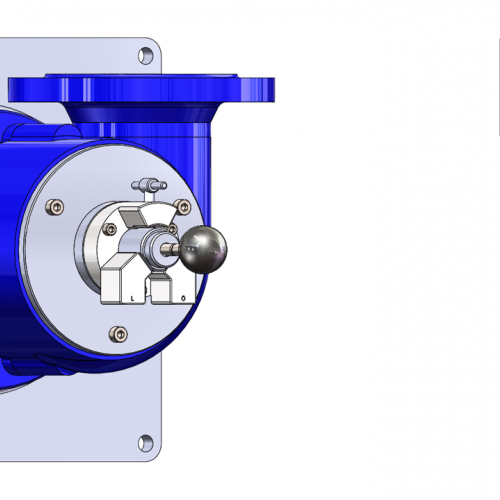

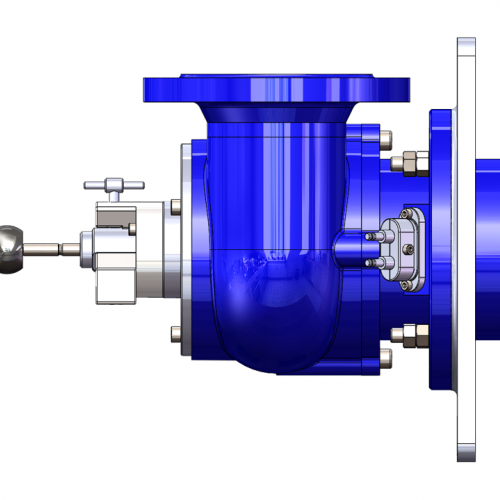

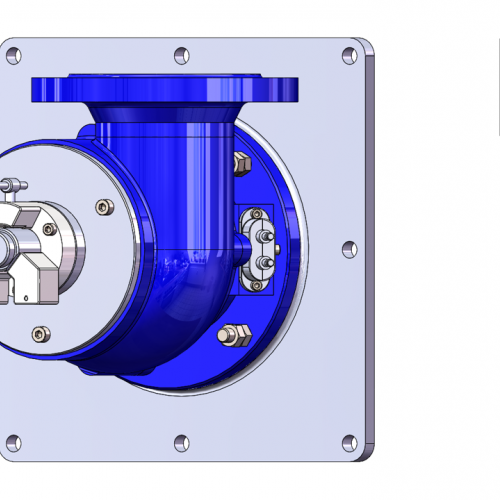

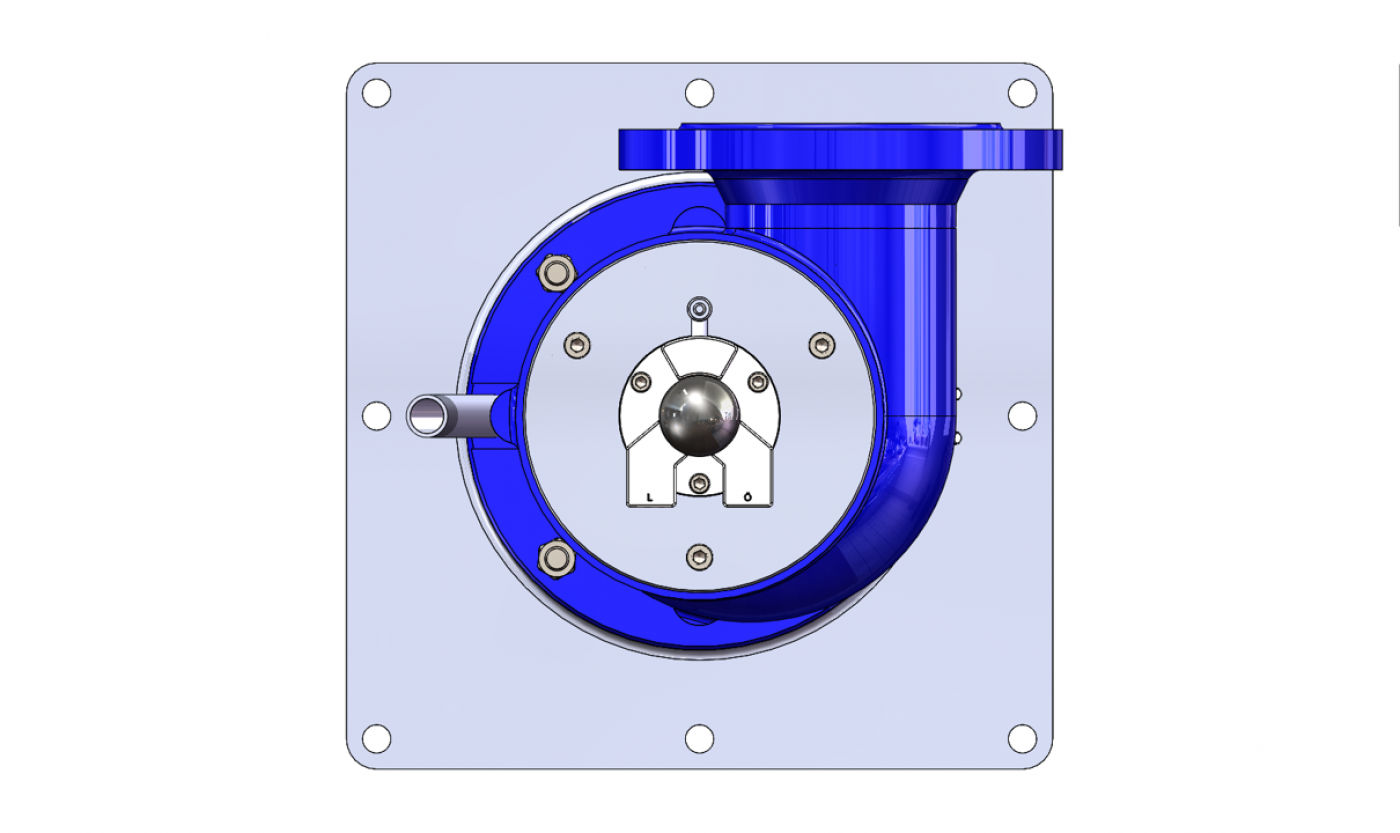

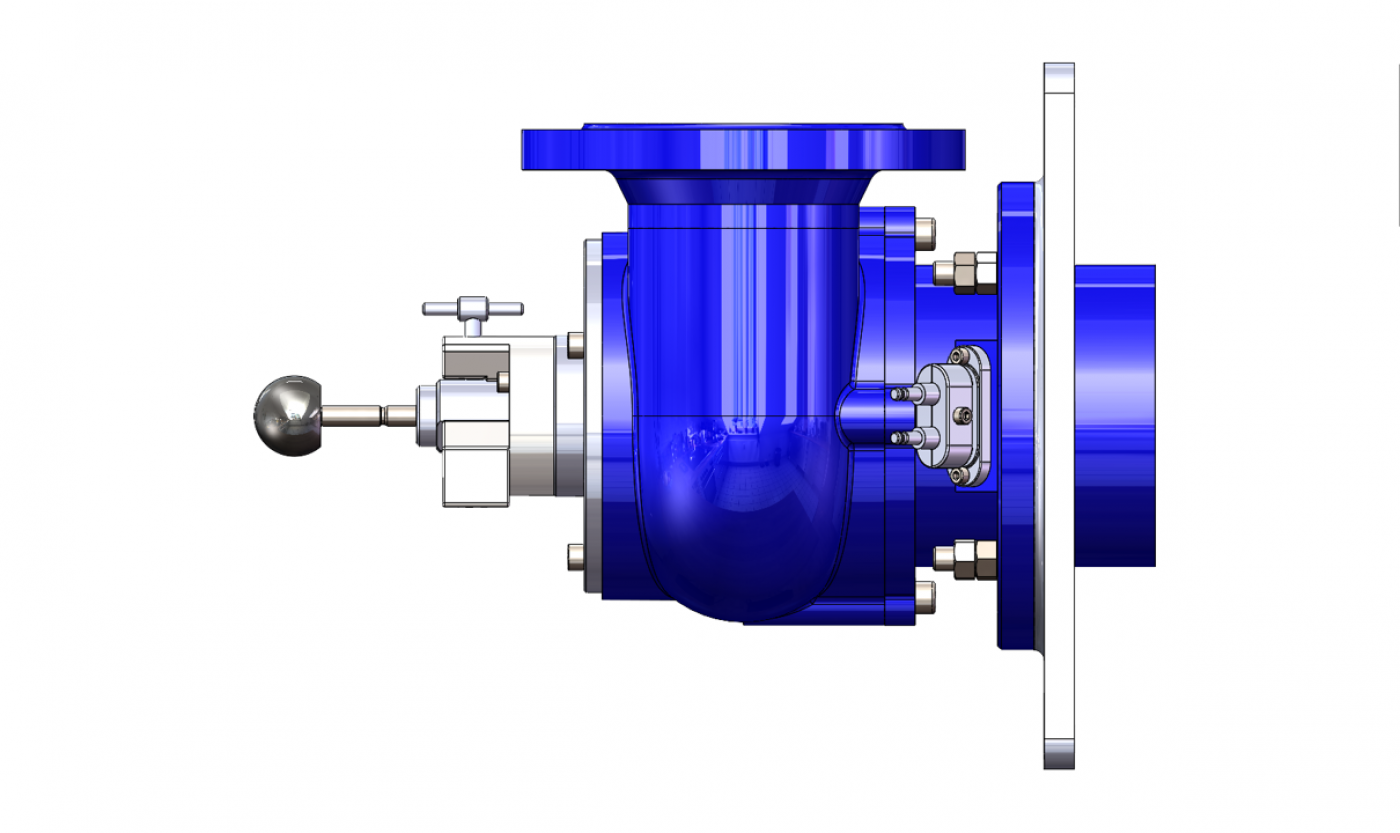

please click on the respective picture for a complete view
RAY Egelhof - Industrial oil burners of the “NBO” - series are used at all kinds of firing kilns, furnaces and post combustion chambers and are suitable for firing of liquid fuels such as LFO and Green fuels.
RAY Egelhof - “NBO” - series burners are available in a capacity range from 120 kW (409 MBTU) - 5.400 kW (18,425 MBTU).
For more information, please get in contact with us - our team will be happy to support you!

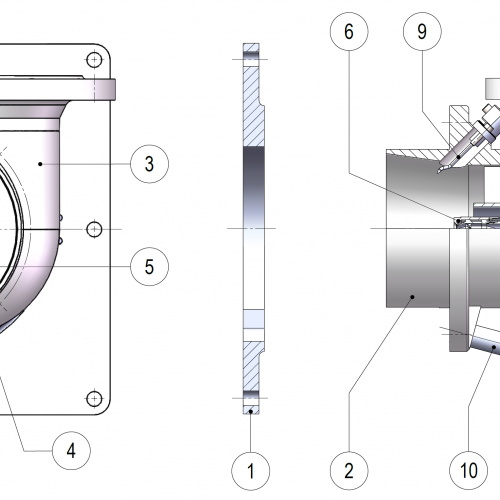

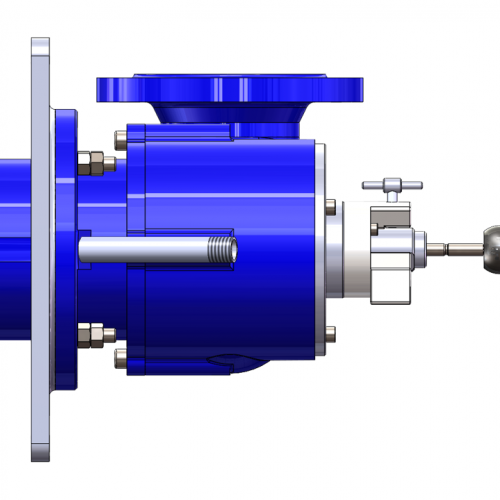

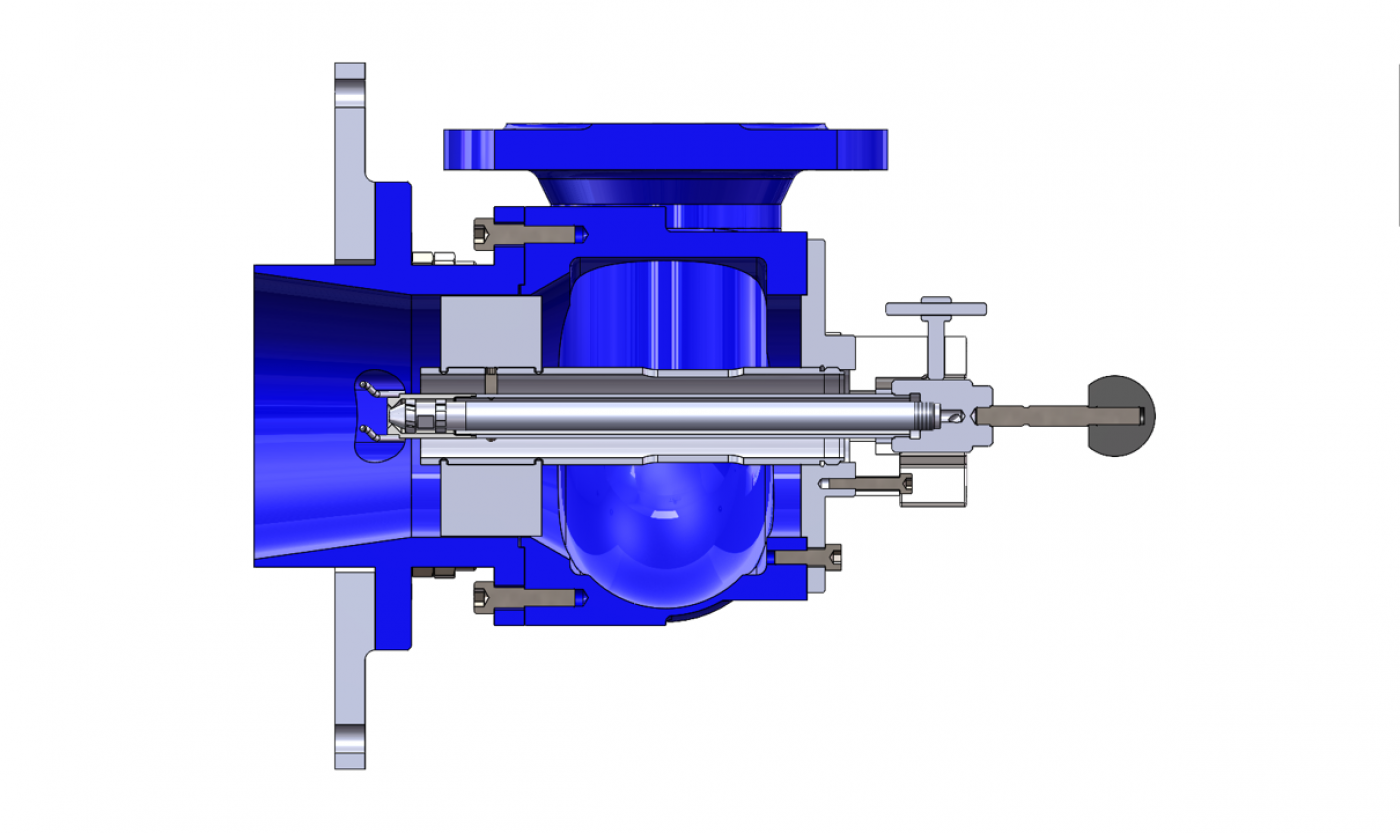

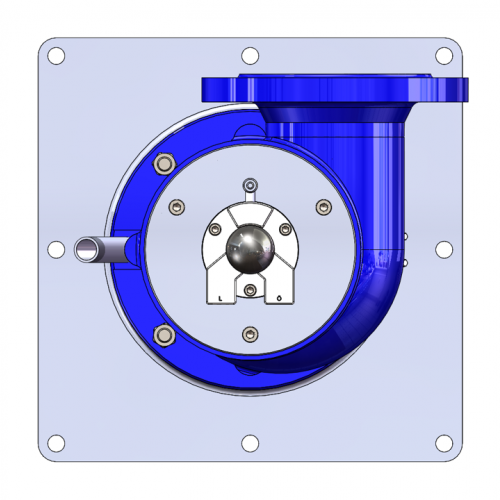

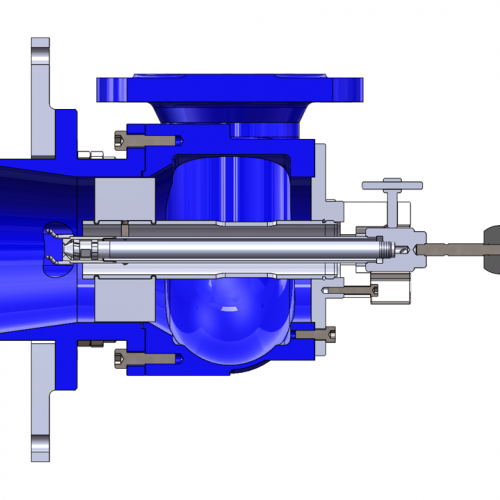

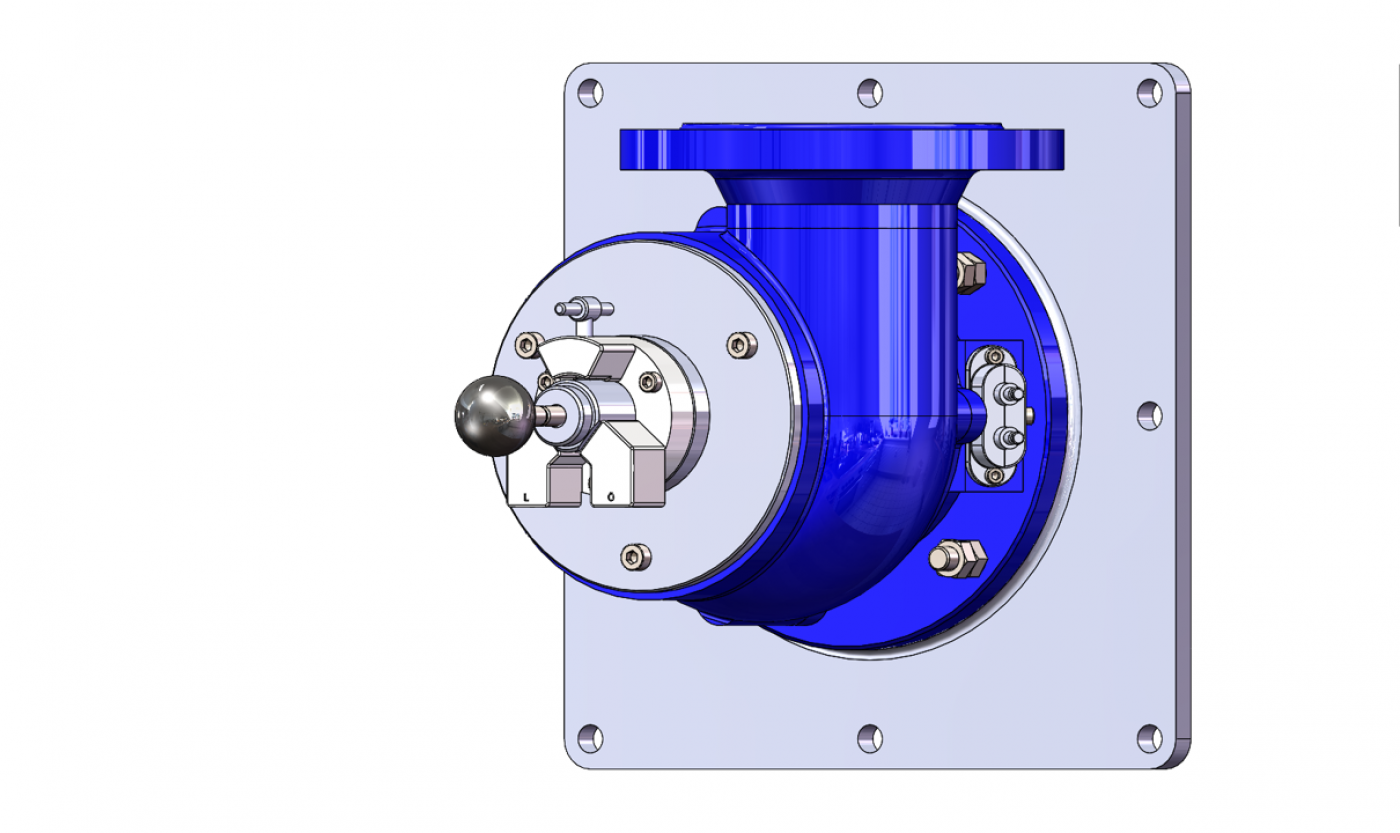

Design of the burner
You will find the matching picture in the slider on the right!

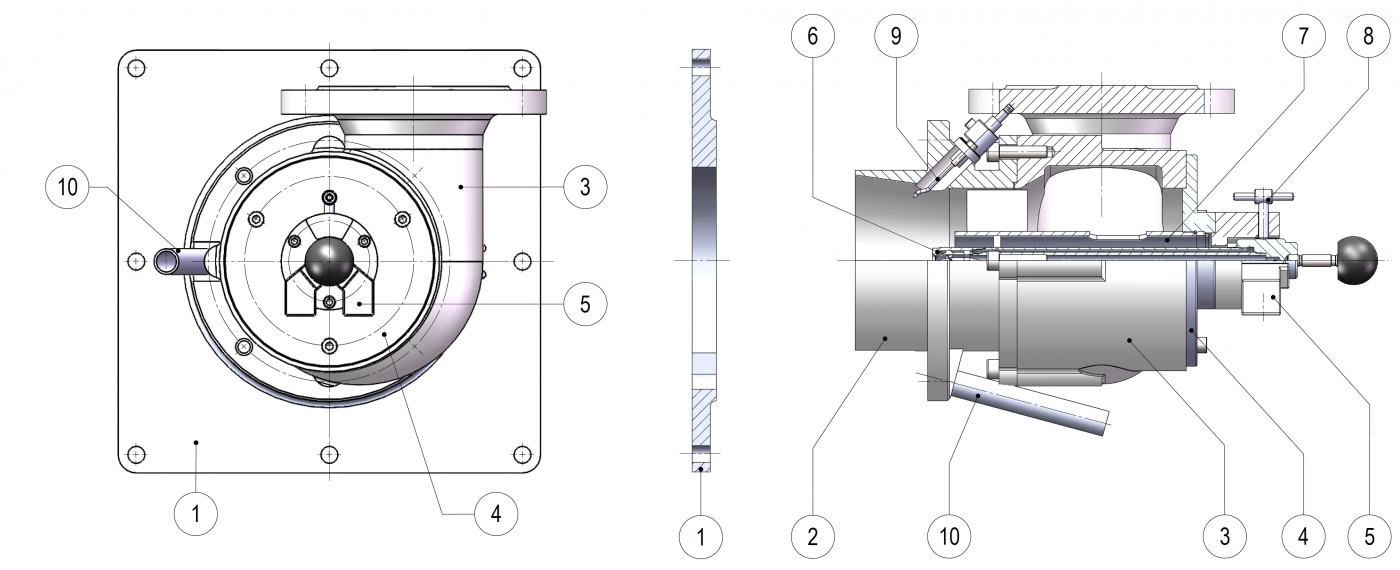

| 1. Burner plate | 2. Mounting flange |
| 3. Burner housing | 4. Insertion flange |
| 5. Quick-release clamp | 6. Nozzle block |
| 7. Air guide tube with air baffles | 8. Tommy screw |
| 9. Ignition electrodes | 10. Flame sensor bracket |
Operating range
Burner operating range in relation to combustion air temperature
| Burner type | 20°C | 20°C | Weight burner with burner plate |
| 100% | 100% | ||
| kW | MBTU | kg | |
| NBO 40 | 120 | 409 | ca. 10,2 |
| NBO 50 | 180 | 614 | ca. 17,0 |
| NBO 65 | 300 | 1,024 | ca. 17,5 |
| NBO 80 | 480 | 1,638 | ca. 28,9 |
| NBO 100 | 780 | 2,661 | ca. 35,5 |
| NBO 125 | 1200 | 4,094 | ca. 52,6 |
| NBO 150 | 1560 | 5,323 | ca. 61,2 |
| NBO 200 | 3000 | 10,236 | ca. 82,7 |
| NBO 250 | 4200 | 14,330 | * |
| NBO 300 | 5400 | 18,425 | * |
Note: Burner operating range refers to standard furnace and combustion air conditions.
